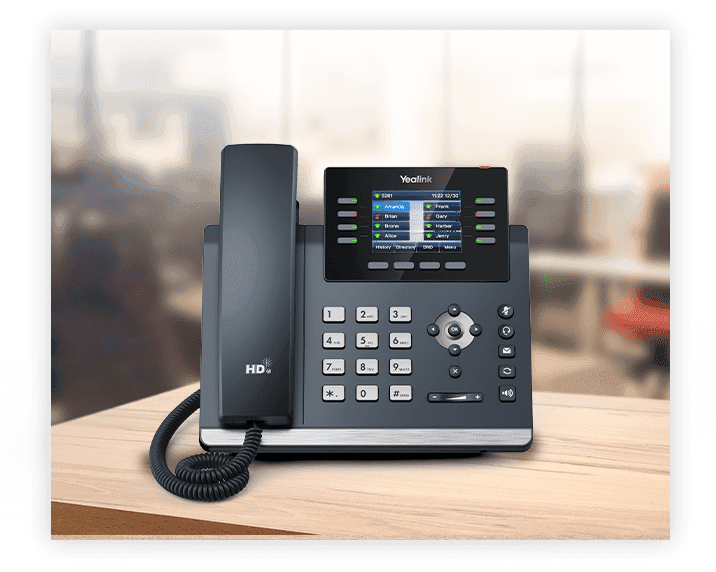

Yealink SIP-T44W
CurrentYealink T4 Series

Yealink SIP-T44W

Feature-rich Wi-Fi SIP Phone

Datasheet Firmware Get support
Brand
Yealink
Series
T4 Series
Model
SIP-T44W
Status
Current
Documents
36 manuals & files
Knowledge base
306 articles

Overview

About the Yealink SIP-T44W

The new Yealink T4U series offers a modern and elegant appearance, along with improvements for greater interoperability and better collaboration.

Key features

  • Easy Customization and High Expansibility
  • Wireless Transmission
  • Efficient Installation and Provisioning

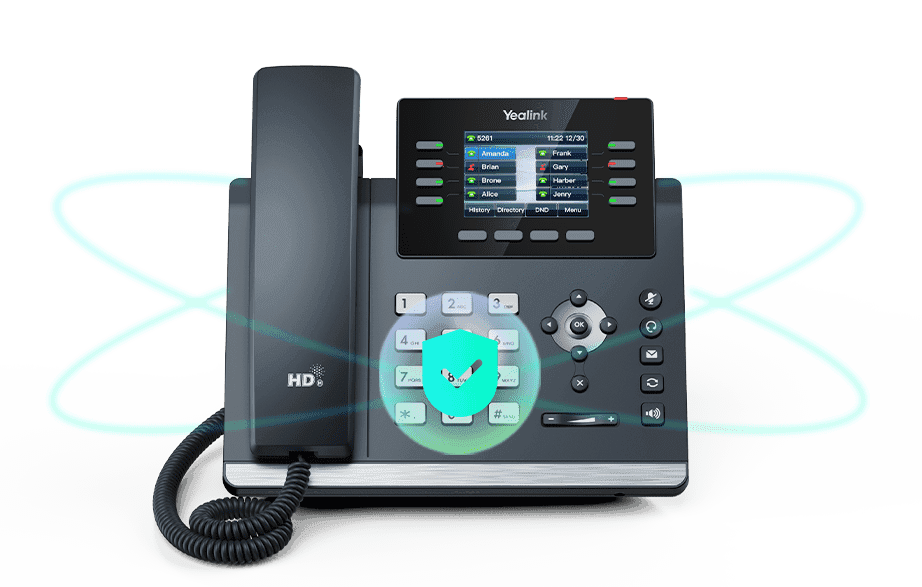

  • Secure Transport and Interoperability
  • 2.8” 320x240-pixel color LCD with backlight
  • Dual USB ports
  • Dual firmware images
  • Built-in Bluetooth 4.2
  • Built-in dual band 2.4G/5G Wi-Fi (802.11a/b/g/
  • T4U Auto-P template unified
  • T4U firmware unified
  • Up to 12 SIP accounts
  • USB headset and EHS support
  • Supports color-screen expansion modules
  • Stand with 2 adjustable angles
  • Wall mountable
  • Handset with hall switch

Specifications

SIP-T44W technical specifications

Source datasheet

  • HD voice: HD handset, HD speaker
  • Hearing aid compatible (HAC) handset
  • Acoustic Shield
  • Smart Noise Filtering
  • Wideband codec: AMR-WB (optional), G.722
  • Narrowband codec: AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC

  • 12 VoIP accounts
  • One-touch speed dial, redial
  • Call forward, call waiting, call transfer, call hold
  • Call return, group listening
  • Emergency call
  • Mute, DND
  • Auto answer
  • Hoteline
  • 5-way conference call
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Set the date and time manually or automatically
  • Dial Plan, XML Browser, Action URL/URI
  • RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
  • Built-in dual-band Wi-Fi:
  • Network standard: IEEE802.11a/b/g/n/ac
  • Transmission rate: Up to 433Mbps (dynamic)
  • Frequency range: 2.4GHz/5.0GHz
  • Built-in Bluetooth 4.2 for:
  • Bluetooth headsets
  • Contact synchronization
  • Bluetooth call
  • Simultaneous connection of one headset and one mobile phone
  • Dual USB ports (2.0 compliant)
  • USB call recording through a USB flash drive

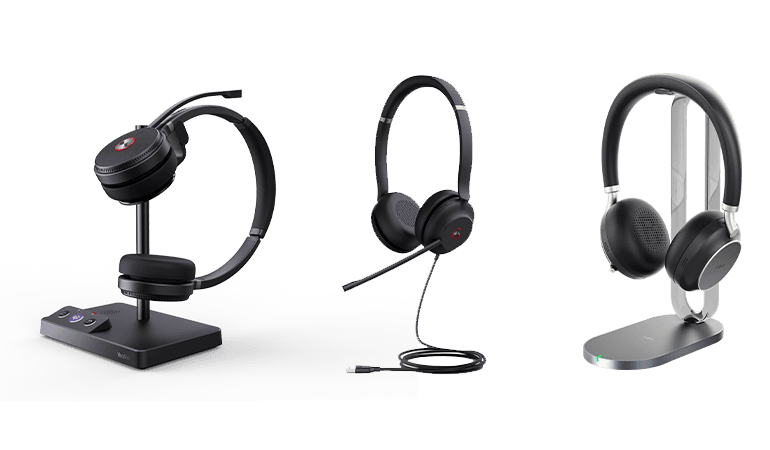

  • USB headset

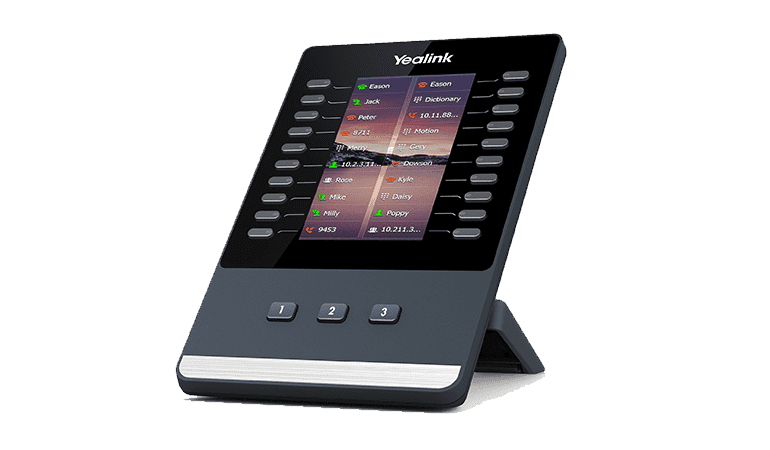

  • Expansion Module EXP43
  • Wireless Headset Adapter EHS40
  • USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone/wireless headset UH38, USB connectivity to Yealink wired headset UH34/UH36/UH37
    • Basic functions: Answer/end, call mute
    • Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
  • Enhanced DSS key

Documents

SIP-T44W manuals & downloads

Datasheets, user and admin guides, quick start guides and deployment files, downloaded directly from Yealink.

Datasheets

1

Quick Start Guides

1

Compatibility

6

Deployment

3

Technical Topics

16
Show 10 more technical topics

Other Downloads

2

Firmware

SIP-T44W firmware & release notes

Newest first. Check your phone’s current version under Menu → Status before upgrading, and update one phone before a whole office.

Knowledge base

SIP-T44W how-to articles

306 articles from Yealink’s knowledge base, grouped by topic. Articles open on support.yealink.com.
Search SIP-T44W articles
Call Features39See all 39 articles
Audio Features18See all 18 articles
Bluetooth17See all 17 articles
Customize Your Phone16See all 16 articles
Directory and Call Log16See all 16 articles
Auto Provisioning Guide14See all 14 articles
Network Configurations14See all 14 articles
Advanced Features13See all 13 articles
Phone Customization13See all 13 articles
Security Features13See all 13 articles
System Applications for VP59, T58A, T58W, T88W (Pro), T88V Pro12See all 12 articles
Advanced Call Features11See all 11 articles

More topics

Troubleshooting 10General Features 9Use CPW65 with CP965 9Use DECT Handsets with Phone 9Getting Started 8Audio Settings 7Directory 7Enter Characters 7Using DECT Handsets with Desk Phones 7Call History 6Maintain Phone 6Wireless Network 6Account Settings 5Use CP965 Star Connection Feature 3Optional Accessories with Phone 2CP960 & CP965 Star Connection 1Device Mode 1Firmware Upgrade 1Headset Settings 1Use CP960 & CP965 with PC 1Use a Phone with a PSTN Account 1
