Yealink W75 Mini MC

Yealink W75 Mini MC

DECT IP multi-cell system

Brand
Yealink
Model
W75 Mini MC
Status
Current
Documents
13 manuals & files
Knowledge base
228 articles

Overview

About the Yealink W75 Mini MC

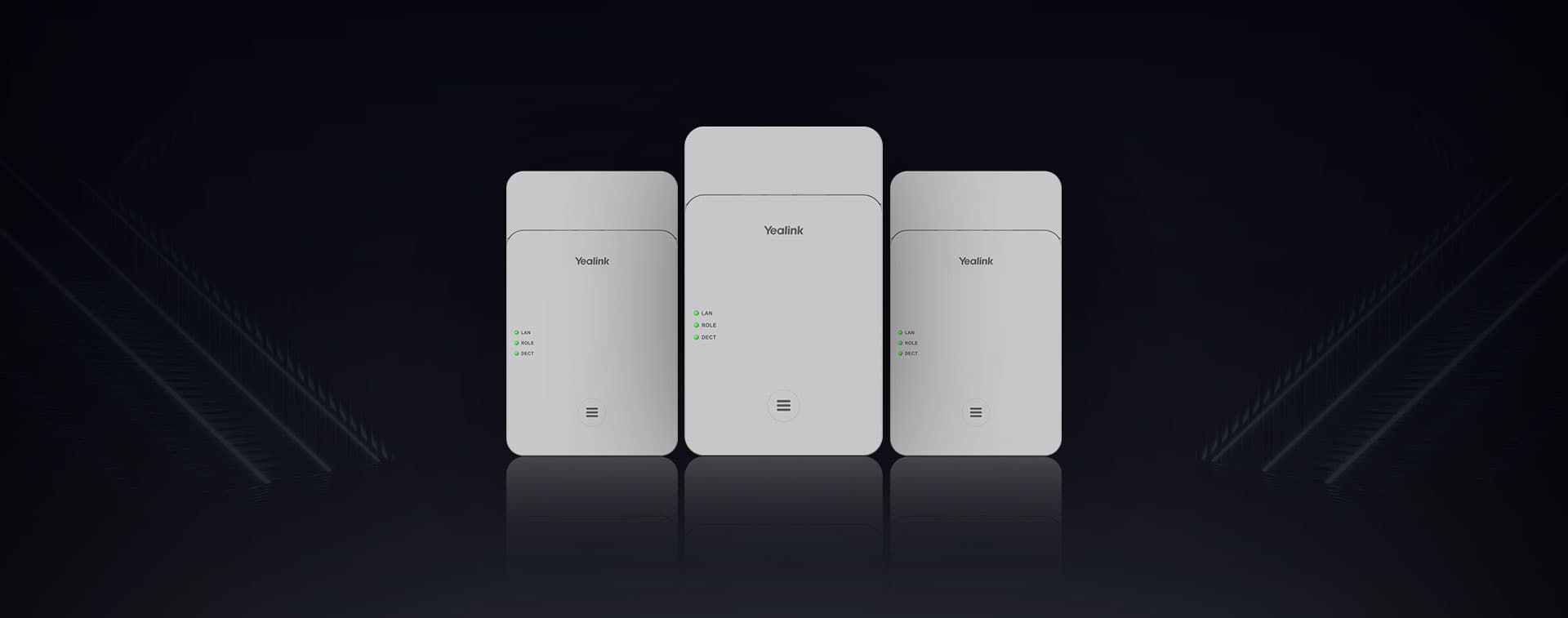

Suit for large spaces that need to use Multi-Cell solution with up to 3 base stations/20 multiple devices/20 parallel calls.

The Yealink W75 DECT IP Mini Multi-Cell System provides easy setup for users and resellers even in a non-multicast network environment.The DM and Base can be physically connected to each other to establish the system. In the multicast network, administrators profit from zero touch provisioning that the system is established as soon as the base station is powered on and connected to the network. Do not worry if you are in the non-multicast network environment, just configure the IP address of the DECT Manager via the web user interface of the base station to complete the deployment.

The Yealink W75 DECT IP Mini Multi-Cell System provides a seamless roaming and handover solution that allows users to move freely in large spaces. In addition to supporting up to 3 base stations and 20 handsets, the wireless feature of this System enables users to enjoy flexibility, seamless roaming and handover, HD audio quality, and clear communication.

Yealink W75 DECT IP Mini MC System is compatible with multiple Yealink DECT devices, including W56H,W57R, W59R, W71H, W73H, W74H and W78H, that all of those devices can be connected to one single or multi-cell DECT system from Yealink and a complete DECT ecosystem is just at your fingertips.

Key features

  • Easy Setup, Fast Deployment
  • The Yealink W75 DECT IP Mini Multi-Cell System provides easy setup for users and resellers even in a non-multicast network environment.The DM and Base can be physically connected to each other to establish the system. In the multicast network, administrators profit from zero touch provisioning that the system is established as soon as the base station is powered on and connected to the network. Do not worry if you are in the non-multicast network environment, just configure the IP address of the DECT Manager via the web user interface of the base station to complete the deployment.
  • Seamless Roaming & Stability
  • The Yealink W75 DECT IP Mini Multi-Cell System provides a seamless roaming and handover solution that allows users to move freely in large spaces. In addition to supporting up to 3 base stations and 20 handsets, the wireless feature of this System enables users to enjoy flexibility, seamless roaming and handover, HD audio quality, and clear communication.

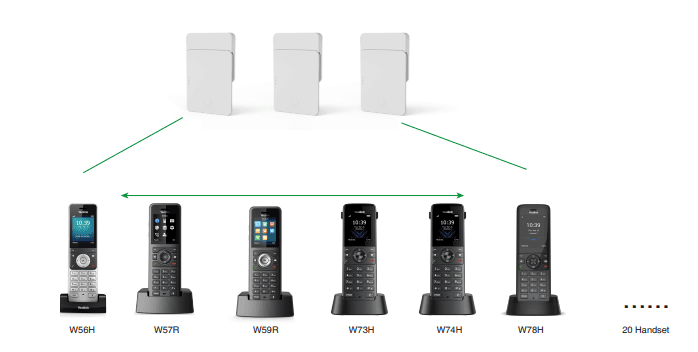

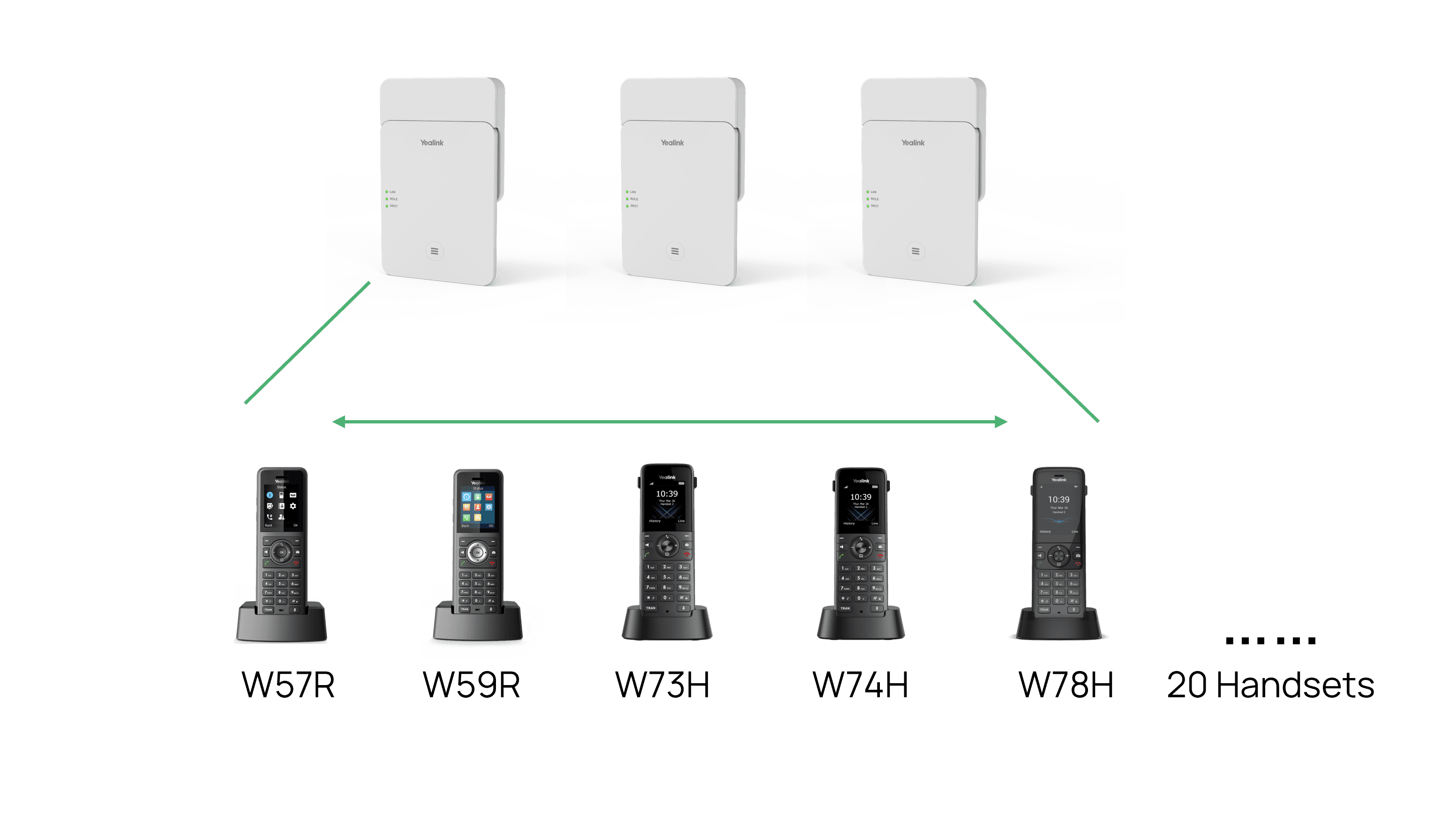

  • Compatible with Multiple Devices
  • Yealink W75 DECT IP Mini MC System is compatible with multiple Yealink DECT devices, including W56H,W57R, W59R, W71H, W73H, W74H and W78H, that all of those devices can be connected to one single or multi-cell DECT system from Yealink and a complete DECT ecosystem is just at your fingertips.
  • System Backup
  • Yealink W75 DECT IP Mini MC supports sync Level 1 base backup. When the Level 1 base goes offline, other bases in the system can be used as the backup Level 1 base, and the backup can be completed within one minute to replace the Level 1 Base so that the system can quickly maintain normal use. Yealink W75 Mini MC supports DM dual hot function to ensure the normal and stable operation of the W75 DECT IP Mini MC system.
  • Easy Access to Multiple Phone Books
  • The Yealink W75 DECT IP Mini Multi-Cell System offers easy access to multiple phone books, including Local Directory, Remote Phonebook, LDAP, and XML Phonebook. Additionally, it is broadly compatible with PBX contacts.
  • BUILD YOUR UNCRACKABLEPHONE SECURITY
  • The W75 Mini MC is shielded with the latest security mechanisms, making your conversations more secure than ever. With TLS 1.3, you benefit from faster and more robust encryption. Learn more enhanced security features in the V87 upgrade.
  • *This product is intended for business customer and is distributed through authorized business-to-business (B2B) partners.
  • Please fill in and submit the information below and our representative will contact you soon.
  • if (window.localStorage.getItem('privacyData') && JSON.parse(window.localStorage.getItem('privacyData')).targeted == '1') {
  • (function() {
  • var af = document.createElement("script");
  • af.type = "text/javascript";
  • af.async = true;
  • af.src = "https://www.linkedin.com/autofill/js/autofill.js";
  • var s = document.getElementsByTagName("script")[0];
  • s.parentNode.insertBefore(af, s);
  • ${$t(item.fieldShowName) }
  • ${item.description}
  • ${errorMsg[item.fieldName]}
  • Verification Code
  • $(function() {
  • getLanguageBag(function() { customFormPageInit('6604d8a104f90d156f03d723') })

Specifications

W75 Mini MC technical specifications

  • Sync over the air (Seamless handover and roaming)
  • Up to 20 simultaneous calls
  • Up to 3 base stations
  • Up to 8 WB (4 active handsets) calls per base
  • Up to 8 NB calls per base
  • Up to 20 handsets
  • Up to 20 VoIP accounts
  • Up to 2 simultaneous calls per handset
  • Call hold, call transfer, 3-way conference
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call, Anonymous call rejection
  • Call forward (always/busy/no answer)
  • Speed dial, voice mail, redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 100 entries per handset
  • Remote phonebook/LDAP/XML phonebook
  • Phonebook search/import/export
  • Call history (all/missed/placed/received)
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • BroadSoft directory, BroadSoft call log
  • Broadworks feature key synchronization
  • Shared Call Appearance (SCA)
  • XML browser
  • IPUI registration
  • User access level

  • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
  • Auto-provision with PnP
  • Handset upgrade: OTA (Over-The-Air)
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export

Firmware

W75 Mini MC firmware & release notes

Newest first. Check your phone’s current version under Menu → Status before upgrading, and update one phone before a whole office.

Knowledge base

W75 Mini MC how-to articles

228 articles from Yealink’s knowledge base, grouped by topic. Articles open on support.yealink.com.
Call Features36See all 36 articles
Handset Customization20See all 20 articles
Customize Your Phone17See all 17 articles
Auto Provisioning Guide14See all 14 articles
Security Features14See all 14 articles
Network Configurations12See all 12 articles
Audio Features11See all 11 articles
General Features11See all 11 articles
Troubleshooting Methods10See all 10 articles
Directory and Call Log9See all 9 articles
PTT (Multi-Cell System)8See all 8 articles
XML Customization Guide8See all 8 articles
