Yealink W79P

Yealink W79P

Professional Ruggedized DECT IP Phone System

Brand
Yealink
Model
W79P
Status
Current
Documents
37 manuals & files
Knowledge base
218 articles

Overview

About the Yealink W79P

Supporting registration with up to 10 Yealink W59R DECT handsets, the W79P system is launched with robust processing capacity for up to 10 SIP accounts and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.

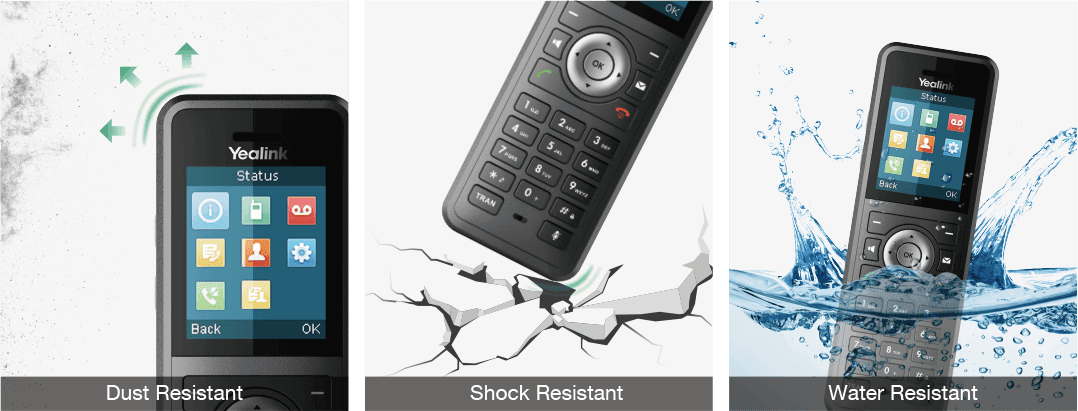

Designed to working as a professional ruggedized DECT handset (certified to IP67) with integrated Bluetooth and vibration alarm, the W59R handset is eligible and qualified for the environments may be affected by dusty, humid, and harsh.

In addition, a series of alarm functions are inplanted to help reporting emergencies and minimize safety risks.

Based on the full compatibility with Yealink W70B base station, which presents enhanced processing capability while embracing cutting-edge wireless communication technologies, Yealink W79P always provides the users with high-quality audio even in the complicated or impressionable environments.

The W79P supports efficient provisioning and effortless mass deployment with Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism to help realize remote deployment, maintenance and upgrade. Moreover, the new web portal for device management brings clear and intuitive interface to upgrade user experience.

Specifications

W79P technical specifications

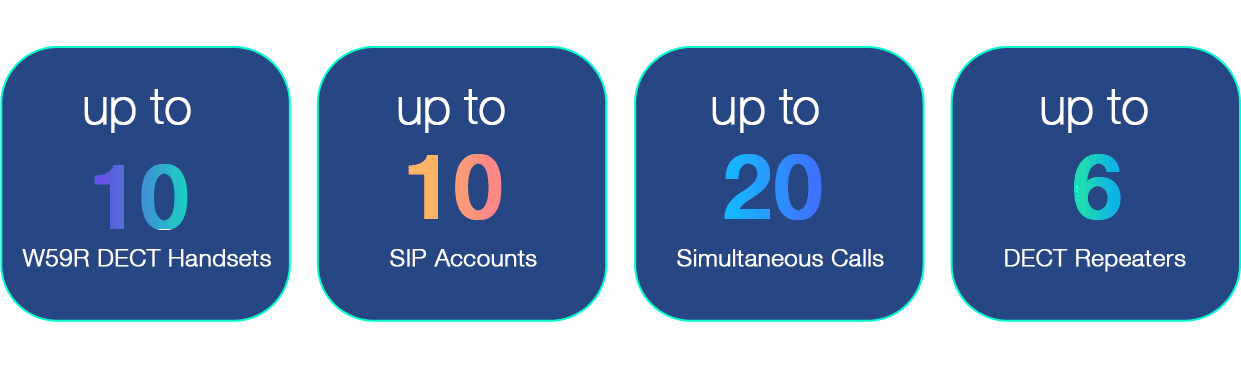

  • Up to 20 simultaneous calls
  • Up to 10 handsets
  • Up to 10 SIP accounts
  • Up to 2 simultaneous calls per handset
  • Up to 6 repeaters per base station (RT30)
  • Vibration alarm

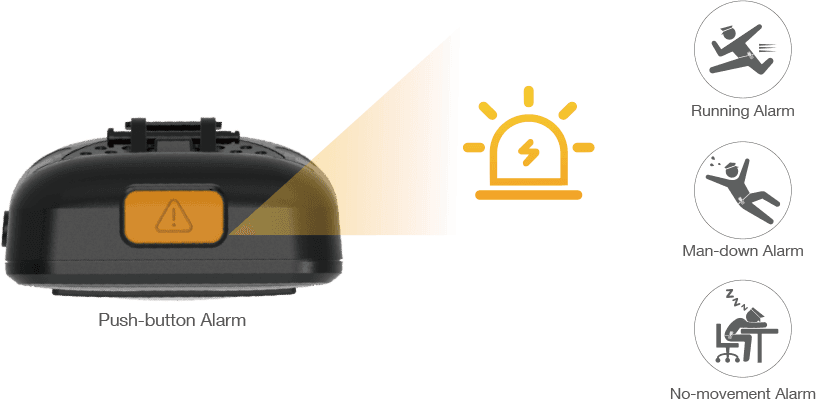

  • Alarm functions: push-button/no-movement/man-down/running
  • Handset selection for receiving a call
  • Handset and number selection for placing a call
  • Paging, intercom, auto answer, dial plan
  • Call hold, call transfer, 3-way conference
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call/Anonymous call rejection
  • Call forward: Always/Busy/No Answer
  • Speed dial/Voice mail/Redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 1000 entries (stored in the base)
  • Remote phonebook/LDAP/XML phonebook
  • Phonebook search/import/export
  • 100 call history per handset: All/Placed/Missed/Received
  • Direct IP call without SIP proxy
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • BroadSoft directory, BroadSoft call log
  • Broadworks feature key synchronization
  • Shared Call Appearance (SCA)
  • XML browser
  • Action URI

  • 9 ringer melodies
  • Screen saver
  • Multilingual user interface

Documents

W79P manuals & downloads

Datasheets, user and admin guides, quick start guides and deployment files, downloaded directly from Yealink.

Firmware

W79P firmware & release notes

Newest first. Check your phone’s current version under Menu → Status before upgrading, and update one phone before a whole office.

Knowledge base

W79P how-to articles

218 articles from Yealink’s knowledge base, grouped by topic. Articles open on support.yealink.com.
Call Features42See all 42 articles
Customize Your Phone20See all 20 articles
Handset Customization20See all 20 articles
Auto Provisioning Guide14See all 14 articles
Security Features14See all 14 articles
Network Configurations12See all 12 articles
Audio Features11See all 11 articles
General Features11See all 11 articles
Troubleshooting Methods10See all 10 articles
Directory and Call Log9See all 9 articles
Audio Settings8See all 8 articles
Account Settings6See all 6 articles
