smplVoice
Yealink W80
CurrentYealink W Series (DECT)

Yealink W80

DECT IP multi-cell system

Datasheet Firmware Get support
Brand
Yealink
Series
W Series (DECT)
Model
W80
Status
Current
Documents
26 manuals & files
Knowledge base
237 articles

Overview

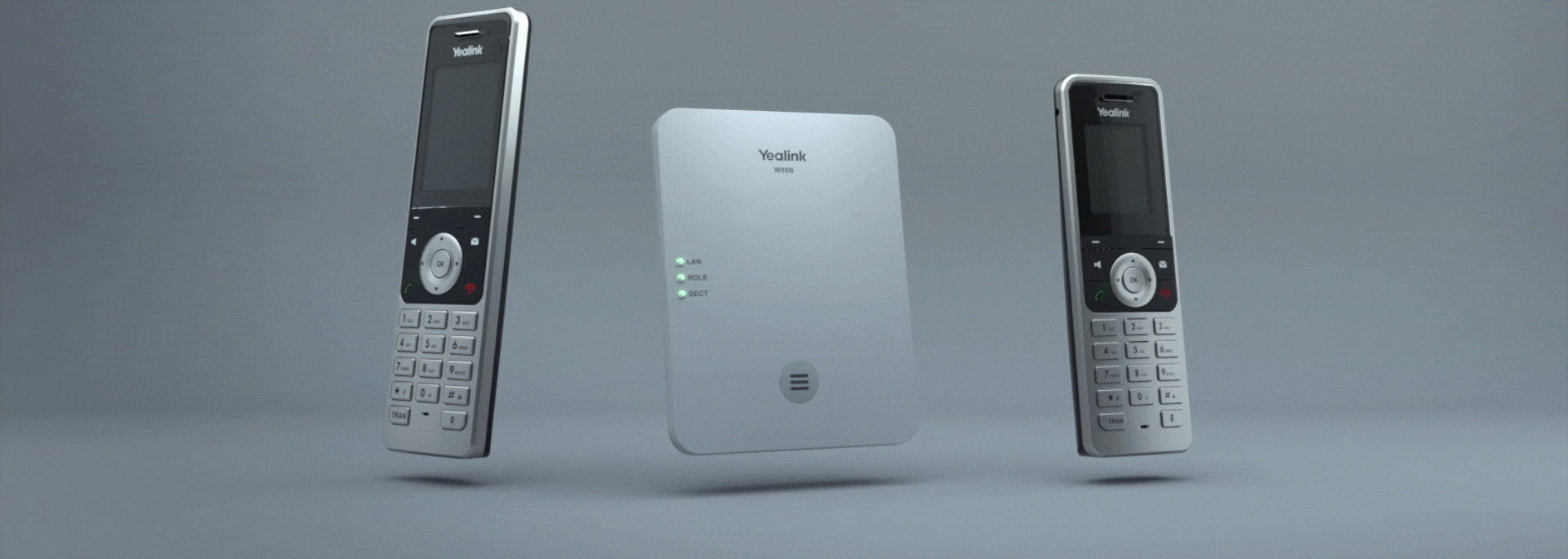

About the Yealink W80

Suit for large spaces that need to use Multi-Cell solution with up to 30 base stations/100 multiple devices/100 parallel calls.

W80 is compatible with Microsoft SIP Gateway, enabling seamless Teams communication.

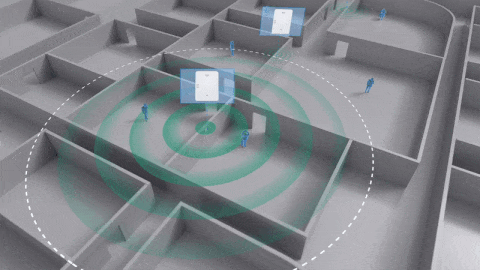

The Yealink W80 DECT IP Multi-Cell System provides easy setup for users and resellers even in a non-multicast network environment. By using the Yealink DECT IP Multi-Cell Deployment Toolkit, the correct location of each W80B base station can be quickly confirmed. Users can set up the system easily and plan large-scale deployments in just a few steps: measurement, installation, and configuration.

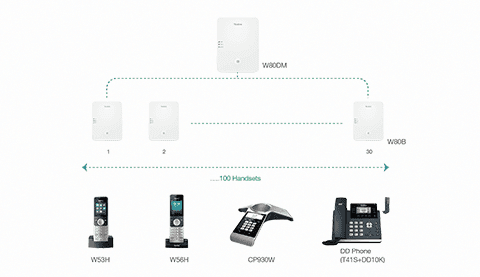

The Yealink W80 DECT IP Multi-Cell System provides a seamless roaming and handover solution that allows users to move freely in large spaces. In addition to supporting up to 30 base stations and 100 handsets, the wireless feature of this System enables users to enjoy flexibility, seamless roaming and handover, HD audio quality, and clear communication.

Key features

  • No Perception Upgrade
  • Sync Level1 Base Backup
  • Headsets Registration
  • Security & Stability
  • Advanced DECT Contacts
  • Efficient Provisioning & Unified Management
  • Easy Setup and Deployment
  • Compatible with Multiple Devices
  • Seamless handover and roaming
  • Up to 100 parallel calls
  • Up to 30 base stations
  • Up to 100 handsets
  • Up to 100 SIP accounts
  • Support XML/LDAP/Remote Phonebook
  • Support Xsi Directory
  • DECT radio coverage up to 50 m indoors and 300 m outdoors
  • Support IPv6
  • DECT Technology: Yealink DECT technology focuses on high-quality Audio VoIP (wideband) and low-bit-rate data applications. However, we are incompatible with third-party DECT devices (base station, handset, etc.).
  • Compatible with Yealink W56H/W53H (version x.85.0.45 or later), W73H (version 116.85.0.25 or later), W78H (version 16.85.0.5 or later), CP930W (version 87.85.0.45 or later), W59R (version 115.85.0.45 or later), W57R (version 118.85.0.5 or later), CP935W (version 149.86.0.10 or later), T54W+DD10K (version 96.85.0.95 or later) and DD Phone (version 66.84.0.115 or later)

Specifications

W80 technical specifications

Source datasheet

  • Sync over the air (Seamless handover and roaming)
  • Up to 100 simultaneous calls
  • Up to 30 base stations
  • Up to 8 WB (4 active handsets) calls per base
  • Up to 8 NB calls per base
  • Up to 100 handsets
  • Up to 100 VoIP accounts
  • Up to 2 simultaneous calls per handset
  • Call hold, call transfer, 3-way conference
  • Switching between calls
  • Call waiting, mute, silence, DND
  • Caller ID with name and number
  • Anonymous call, Anonymous call rejection
  • Call forward (always/busy/no answer)
  • Speed dial, voice mail, redial
  • Message Waiting Indication (MWI)
  • Music on hold (server-based)
  • Local phonebook for up to 100 entries per handset
  • Remote phonebook/LDAP/XML phonebook
  • Phonebook search/import/export
  • Call history (all/missed/placed/received)
  • Reset to factory, reboot
  • Keypad lock, emergency call
  • BroadSoft directory, BroadSoft call log
  • Broadworks feature key synchronization
  • Shared Call Appearance (SCA)
  • XML browser
  • IPUI registration
  • User access level

  • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
  • Auto-provision with PnP
  • Handset upgrade: OTA (Over-The-Air)
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export

Documents

W80 manuals & downloads

Datasheets, user and admin guides, quick start guides and deployment files, downloaded directly from Yealink.

Datasheets

2

Admin Guides

1

Quick Start Guides

3

Compatibility

5

Other Downloads

3

Firmware

W80 firmware & release notes

Newest first. Check your phone’s current version under Menu → Status before upgrading, and update one phone before a whole office.
Show 1 more firmware files

Knowledge base

W80 how-to articles

237 articles from Yealink’s knowledge base, grouped by topic. Articles open on support.yealink.com.
Search W80 articles
Call Features36See all 36 articles
Handset Customization20See all 20 articles
Customize Your Phone17See all 17 articles
Auto Provisioning Guide14See all 14 articles
Security Features14See all 14 articles
Network Configurations12See all 12 articles
Audio Features11See all 11 articles
General Features11See all 11 articles
Troubleshooting Methods10See all 10 articles
Directory and Call Log9See all 9 articles
PTT (Multi-Cell System)8See all 8 articles
XML Customization Guide8See all 8 articles

More topics

Audio Settings 7Web Statistics 7Other 6Phone Provisioning 6Update Firmware 6Call History 5Directory 5Account Settings 4Multi-Cell Solution Deployment 4Registration 3Appendix 2Teams SIP Gateway 2Bluetooth 1Device Management 1Hardware & LED Introduction 1Maintain Your Phone 1Network 1Phone Feature 1Recovery Mode 1Upgrade 1
