Overview

About the Yealink W90

Multi-site and large location wide coverage ability with Virtual Integrator Manager (VIM)

The Yealink W90 DECT IP Multi-Cell System brings seamless stability. The external antennas bring further signal range, industry-leading coverage, and flexible steering for complex areas, which truly saves amount and cost of bases in deployment. In poor signal transmission environment and strong signal interference, the Lan Sync guarantees stable roaming.

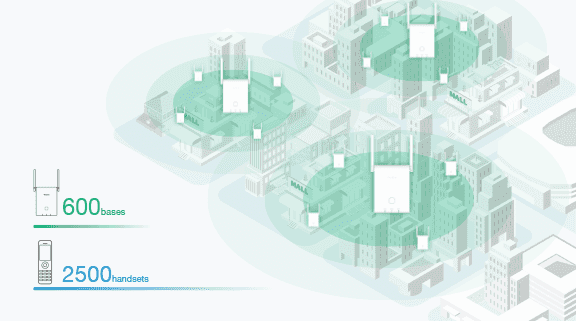

Available for 10DM, 600 bases, 2500 handsets and 2500 parallel calls with Virtual Integrator Manager (VIM) license, the Yealink W90 DECT IP Multi-Cell System is tailored for large space and multi-locations & bases, delivering unified communicating solution especially for warehouses, hospitals, hotels, supermarkets chains, cruises, authorized car dealerships, offices, retail formats, etc. Virtual machines and more bases will be supported in the future, boarding the coverage once more.

Key features

No Perception Upgrade·Sync Level1 Base Backup·Headsets Registration · Seamless Stability·Easy Deployment··Wide Coverage··Full Scenarios··Multiple Phone Books
Support Air and LAN synchronization
Seamless handover and roaming
Up to 10 DM
Up to 600 base stations
Up to 2500 handsets
Up to 2500 SIP accounts
Up to 2500 parallel calls
Support XML/LDAP/Remote Phonebook
Support XSI Directory/XSI Call Log
External antenna, DECT radio coverage up to 50 m indoors and 300 m outdoors
Support IPv6
Support SRTP/SIPS/TLS, LDAP(s) and HTTPS
Compatible with W57R/W59R/W56H/W53H/W73H/W78H, CP930W, CP935W and DD Phone
DECT Technology: Yealink DECT technology focuses on high-quality Audio VoIP (wideband) and low bit-rate data applications. However, we are incompatible with third-party DECT devices (base station, handset, etc.).

Specifications

W90 technical specifications

Source datasheet

Sync over the air and LAN (Seamless handover and roaming)

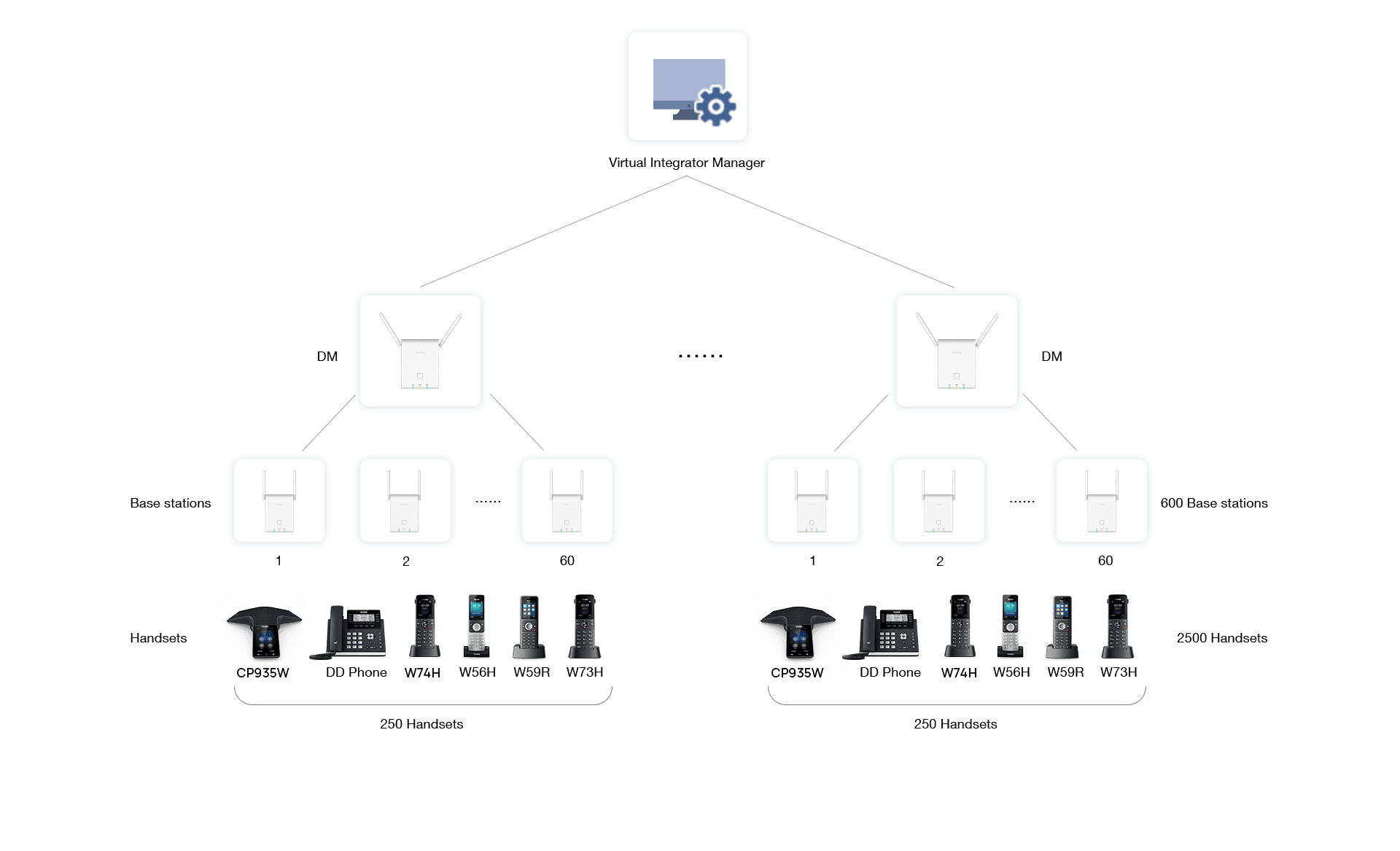

Each VIM System
- Up to 10 DM
- Up to 600 base stations
- Up to 2500 handsets
- Up to 2500 VoIP accounts
- Up to 2500 simultaneous calls
- Up to 8 WB (4 active handsets) calls per base
- Up to 8 NB calls per base
Each W90 Multi-Cell System
- Up to 60 base stations
- Up to 250 handsets
- Up to 250 VoIP accounts
- Up to 250 simultaneous calls
- Up to 8 WB (4 active handsets) calls per base
- Up to 8 NB calls per base
Up to 2 simultaneous calls per handset
Call hold, call transfer, 3-way conference
Switching between calls
Call waiting, mute, silence, DND
Caller ID with name and number
Anonymous call, Anonymous call rejection
Call forward (always/busy/no answer)
Speed dial, voice mail, redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 100 entries per handset
Remote phonebook/LDAP/XML phonebook
Phonebook search/import/export
Call history (all/missed/placed/received)
Reset to factory, reboot
Keypad lock, emergency call
BroadSoft directory, BroadSoft call log
Broadworks feature key synchronization
Shared Call Appearance (SCA)
XML browser
IPUI registration
User access level
DM backup (W90 multi-cell system)
