Yealink T74LTE
CurrentYealink T7 Series

Yealink T74LTE

4G Business Phone for Europe

Datasheet Firmware Get support
Brand
Yealink
Series
T7 Series
Model
T74LTE
Status
Current
Documents
19 manuals & files
Knowledge base
476 articles

Overview

About the Yealink T74LTE

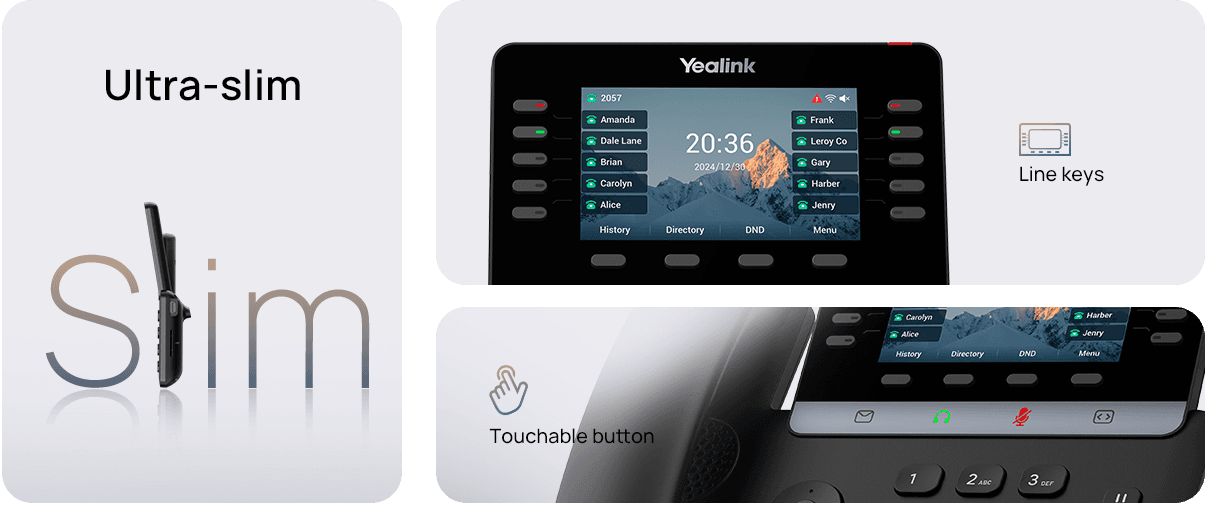

The all-new fashionable design, featuring slimmer body, line keys, and touchable buttons, fits into your modern style. Enjoy comfortable hand feel when you start to work with it!

Ensure business availability through the high coverage of cellular networks and clear HD voice calls.

Specifications

T74LTE technical specifications

Source datasheet

  • HD voice: HD handset, HD speaker
  • Hearing aid compatible (HAC) handset
  • Acoustic Shield
  • Smart Noise Filtering
  • Audio codec: EVS, Opus, G.722, PCMA, PCMU, G.729, G.729A, G.726, G.723.1, iLBC, AMR, AMR-WB
  • DTMF: In-band, Out-of-band (RFC 2833)
  • Full-duplex hands-free speakerphone with AEC
  • VAD, CNG, AEC, PLC, AJB, AGC

  • 16 accounts(Contains 1 IMS account)
  • One-touch speed dial, hotline, Intercom
  • Call forward, call waiting, call transfer
  • Mute, DND, call hold, redial, call return, auto answer
  • Group listening
  • SMS, emergency call (E911)
  • 6-way conferencing
  • Ringtone selection/import/delete
  • Set date and time manually or automatically
  • Dial plan, XML Browser, Action URL/URI
  • Built-in dual-band Wi-Fi: - Network standard: IEEE802.11a/b/g/n/ac - Frequency range: 2.4GHz/5.0GHz
  • Built-in Bluetooth for: - Bluetooth headset, - Mobile contacts synchronization
  • USB port (2.0 compliant) for: - Wired/wireless USB headset - USB call recording through USB flash drive - Export Qlog through USB flash drive
  • Enhanced DSS key
  • 100M Ethernet port, can be used as a WAN port & LAN port.

Documents

T74LTE manuals & downloads

Datasheets, user and admin guides, quick start guides and deployment files, downloaded directly from Yealink.

Datasheets

6

Quick Start Guides

2

Compatibility

3

Deployment

1

Technical Topics

1

Other Downloads

1

Firmware

T74LTE firmware & release notes

Newest first. Check your phone’s current version under Menu → Status before upgrading, and update one phone before a whole office.

Knowledge base

T74LTE how-to articles

476 articles from Yealink’s knowledge base, grouped by topic. Articles open on support.yealink.com.
Search T74LTE articles
Call Features42See all 42 articles
Phone Customization28See all 28 articles
Audio Features14See all 14 articles
Customize Your Phone14See all 14 articles
Security Features12See all 12 articles
General Features11See all 11 articles
Getting Started11See all 11 articles
Advanced Features10See all 10 articles
Directory and Call Log10See all 10 articles
Troubleshooting10See all 10 articles
Advanced Call Features9See all 9 articles
Configuration Parameters9See all 9 articles

More topics

Network Configurations 9Bluetooth 7Maintain Your Phone 6Phone Provisioning 6Wireless Network 6Call History 5Directory 5Account Settings 4Audio Settings 4Network 4Troubleshoot 3Firmware Upgrade 2Optional Accessories with Your Phone 2Security Feature 2ADMIN APN 1Airplane Mode 1Appendix 1
