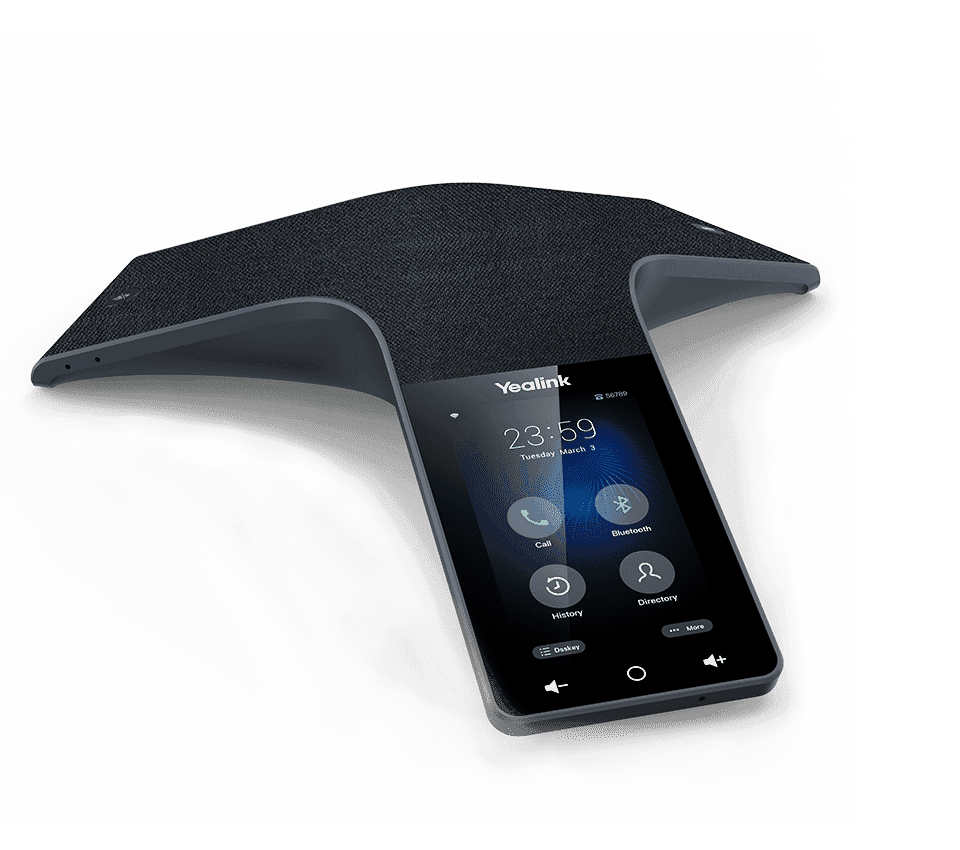

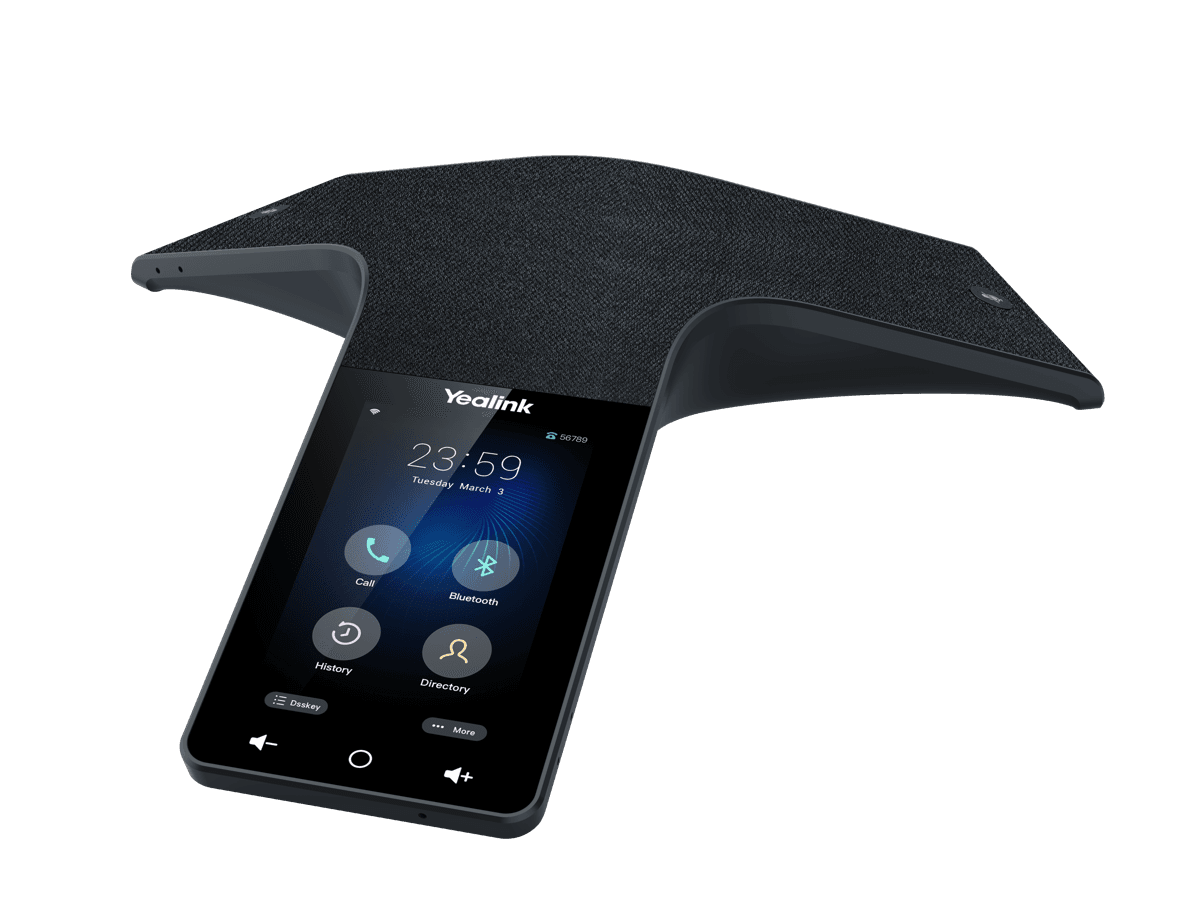

Yealink CP925

Yealink CP925

HD IP conference phone for small to medium conference rooms

Brand
Yealink
Model
CP925
Status
Current
Documents
31 manuals & files
Knowledge base
308 articles

Overview

About the Yealink CP925

The audio performance of CP925 is powered and enhanced with the built-in 7-microphone array for voice pickup and noise cancellation. Covering a range of 20-foot with 360° omni-direction, the phone is adequate to deliver clear and natural voice conference experience.

Diving into the field of audio communication for more than 20 years, Yealink has developed a series of acoustic technology including Smart Noise Filtering, Optimal HD audio and Noise Proof Technology to eliminate all the distracting sounds.the next-generation technology, the exchange of verbal message can be more productive than ever.

● BYOD - By simply connecting the mobile devices (such as smart phone, PSTN device CPN10, etc.) to a CP925 via Bluetooth or USB, everyone can enjoy the premium audio for hybrid UC meetings (including PSTN, SIP, mobile phone).● PSTN conference - With Yealink CPN10, the CP925 also supports 3-way local conference.

The CP925 is shielded with the latest security mechanisms, making your conversations more secure than ever. With TLS 1.3, you benefit from faster and more robust encryption. Learn more enhanced security features in the V87 upgrade.

Modest Design, Easy-to-Use User Interface,HD Audio, Smooth Communication,Rich Features and High Expandability

Key features

  • Modest Design, Easy-to-Use User Interface,HD Audio, Smooth Communication,Rich Features and High Expandability
  • 4-inch multi-touch screen with 480x800 resolution
  • Optimal HD audio, full duplex technology
  • Yealink Noise Proof Technology
  • 20-foot (6-meter) and 360-degree voice pickup
  • Built-in 6-microphone array for voice pickup
  • Built-in 1-microphone array for noise cancellation
  • Power over Ethernet
  • 5-way conference call
  • Hybrid UC meeting
  • Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
  • Built-in Bluetooth 4.2
  • Local 3-way PSTN conference via Yealink CPN10

Specifications

CP925 technical specifications

  • Optimal HD audio
  • Yealink Noise Proof Technology
  • Smart Noise Filtering
  • 20-foot (6-meter) microphone pickup range
  • Applies to a small to medium conference room
  • Built-in 6-microphone array, 360-degree voice pickup
  • Built-in 1-microphone array decreases noise
  • Loudspeaker- Frequency: 100-20,000 Hz- Volume: 94dB at 0.5 m peak volume
  • 56mm diameter and 5W speaker
  • Full-duplex speakerphone with AEC
  • Echo cancellation tail length is up to 320ms
  • Background noise suppression
  • Codecs: G722, G722.1C, G726, G.729, G.729A,G723, iLBC, PCMU(G.711µ), PCMA (G.711A)
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • VAD, CNG, PLC, AJB, AGC

  • 1 SIP account
  • Call hold, mute, DND, call recording, hotline
  • 5-way conference call
  • Analog PSTN calls via CPN10
  • Redial, call waiting, emergency call
  • Call forward, call transfer, call return, dial plan
  • Ring tone selection/import/delete
  • Set the date and time manually or automatically
  • Volume adjustment
  • Pairing via Bluetooth
  • Create a meeting directly
  • Join meeting seamlessly
  • Active Speaker

Documents

CP925 manuals & downloads

Datasheets, user and admin guides, quick start guides and deployment files, downloaded directly from Yealink.

Firmware

CP925 firmware & release notes

Newest first. Check your phone’s current version under Menu → Status before upgrading, and update one phone before a whole office.

Knowledge base

CP925 how-to articles

308 articles from Yealink’s knowledge base, grouped by topic. Articles open on support.yealink.com.
Call Features37See all 37 articles
Audio Features18See all 18 articles
Bluetooth17See all 17 articles
Customize Your Phone16See all 16 articles
Directory and Call Log16See all 16 articles
Phone Customization15See all 15 articles
Auto Provisioning Guide14See all 14 articles
Network Configurations14See all 14 articles
Advanced Features13See all 13 articles
Security Features13See all 13 articles
System Applications for VP59, T58A, T58W, T88W (Pro), T88V Pro12See all 12 articles
Advanced Call Features11See all 11 articles
