Yealink CP935W-Base
Wireless DECT Touch-Sensitive Conference Phone
- Brand
- Yealink
- Series
- CP Series (Conference)
- Model
- CP935W-Base
- Status
- Current
- Documents
- 44 manuals & files
- Knowledge base
- 523 articles
Overview
About the Yealink CP935W-Base
Enabled for DECT connectivity, Yealink CP935W-Base can register SIP account via DECT base directly, which is defined to enhance wireless communication with improved calling and conferencing experience, reliable battery performance and broad spacial applicability.
The audio performance of CP935W-Base is powered and enhanced with the built-in 6-microphone array for voice pickup and noise cancellation. Covering a range of 20-foot with 360° omni-direction, the phone is adequate to deliver clear and natural voice conference experience.With this magic black box, attendees from every corner of the room can hear and be heard with equitable clarity.
Diving into the field of audio communication for more than 20 years, Yealink has developed a series of acoustic technology including Smart Noise Filtering, Optimal HD audio and Noise Proof Technology to eliminate all the distracting sounds.The next-generation technology, powered by solid processing performance, significantly improves the audio quality in collaboration. The exchange of verbal message can be more productive than ever.
BYOD Mode - By simply connecting mobile devices(such as smart phone, personal computer, etc.) to the CP935W through Bluetooth or USB port to realize Hybrid UC meeting (including SIP, mobile phone, PC).
Modest Design, Easy-to-Use User Interface,Built-in Battery, Wi-Fi and DECT to Minimize Deployment Costs,HD Audio, Smooth Communication,Rich Features and High Expandability
Key features
- Modest Design, Easy-to-Use User Interface,Built-in Battery, Wi-Fi and DECT to Minimize Deployment Costs,HD Audio, Smooth Communication,Rich Features and High Expandability
- 4-inch multi-touch screen with 480x800 resolution
- Optima HD voice, full duplex technology
- Yealink Noise Proof Technology
- Built-in Bluetooth 4.2
- Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
- Wi-Fi and DECT mode switchable (Switch via one-touch)
- Built-in battery
- Up to 15-hour talking time (in ideal conditions)
- Up to 167-hour standby time in DECT mode (in ideal conditions)
- 4-hour charging time
- 20-foot (6-meter) and 360-degree microphone pickup range
- Built-in 6-microphone array for voice pickup
- 5-way conference call
- Support to connect with a Bluetooth expansion microphone CPW25
- Hybrid UC meeting
Specifications
CP935W-Base technical specifications
- Optimal HD audio
- Yealink Noise Proof Technology
- Smart Noise Filtering
- 20-foot (6-meter) microphone pickup range
- Applies to a small to medium conference room
- Built-in 6-microphone array for voice pickup
- Loudspeaker- Frequency: 100-20,000 Hz- Volume: 94dB at 0.5 m peak volume
- 56mm diameter and 5W speaker
- Full-duplex speakerphone with AEC
- Echo cancellation tail length is up to 320ms
- Background noise suppression
- Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, PCMU(G.711µ), PCMA (G.711A), AMR
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
- VAD, CNG, PLC, AJB, AGC
- 1 SIP account
- Call hold, mute, DND, call recording, hotline
- 5-way conference call
- Redial, call waiting, emergency call
- Call forward, call transfer, call return, dial plan
- Ringtone selection/import/delete
- Set the date and time manually or automatically
- Volume adjustment
- Pairing via Bluetooth
- Create a meeting directly
- Join meeting seamlessly
- Active Speaker

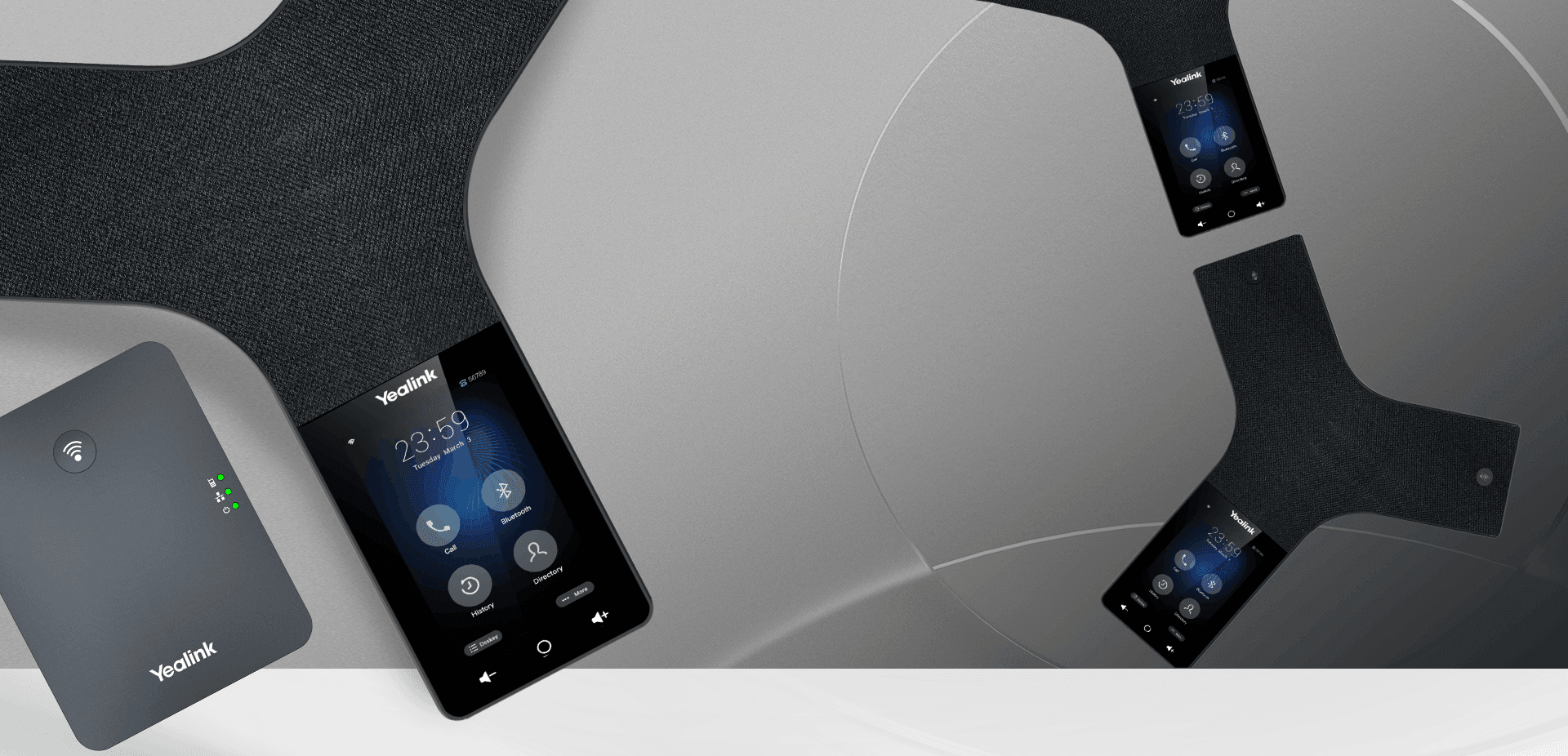

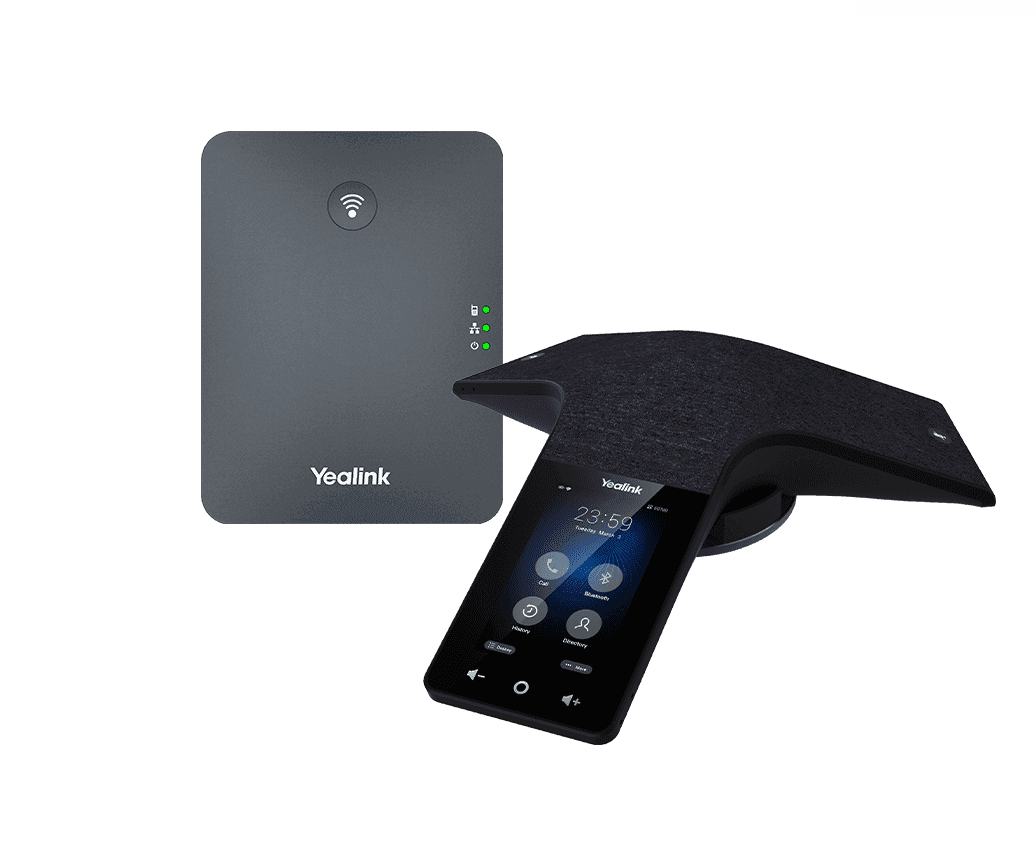

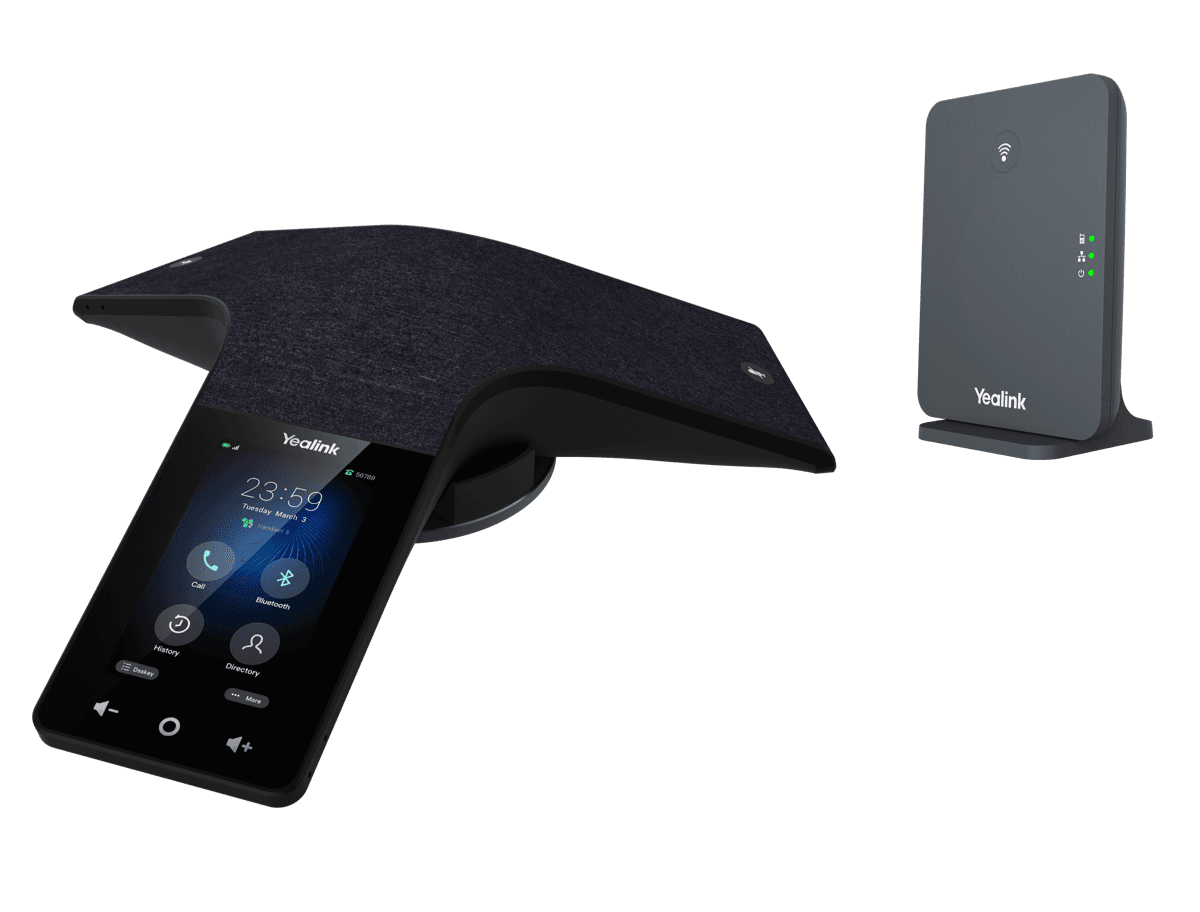

Gallery
