Yealink CP935W

Yealink CP935W

Wireless Wi-Fi Touch-Sensitive Conference Phone

Brand
Yealink
Model
CP935W
Status
Current
Documents
68 manuals & files
Knowledge base
524 articles

Overview

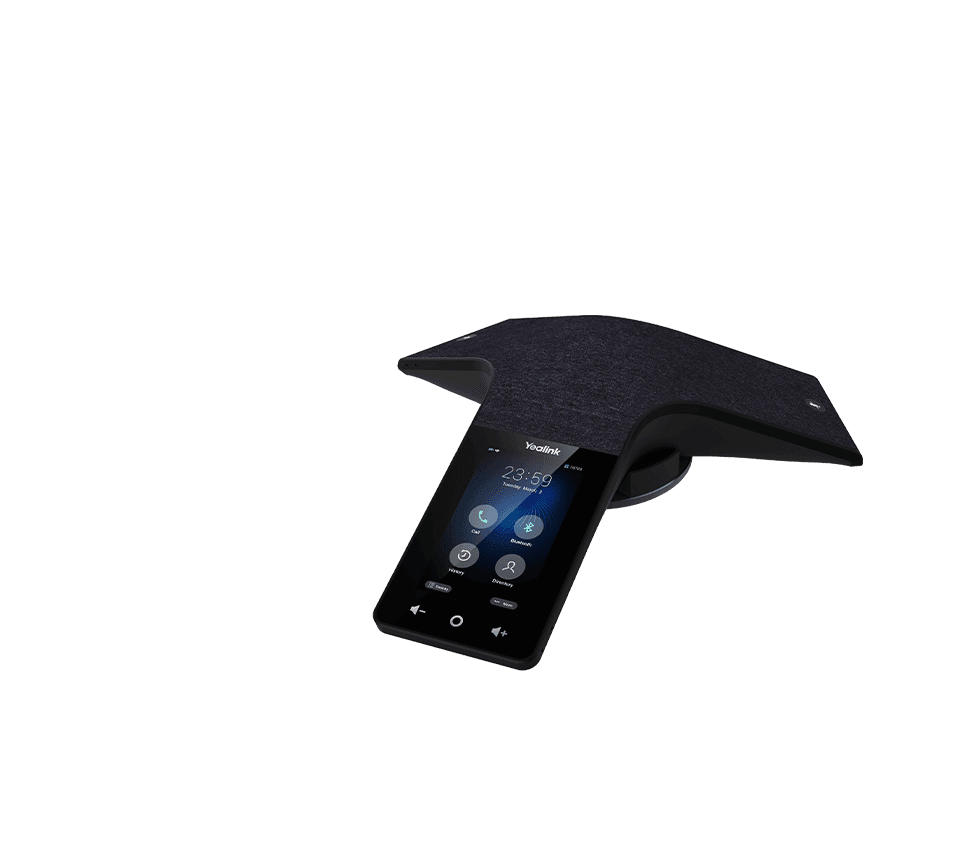

About the Yealink CP935W

Enabled for Wi-Fi network connectivity, Yealink CP935W can register SIP account via Wi-Fi directly, which is defined to enhance wireless communication with improved calling and conferencing experience, reliable battery performance and broad spacial applicability.

Inside the stunning appearance, a set of powerful technology and professional components are wrapped to boost the CP965 with outstanding audio performance.The audio performance of CP935W is powered and enhanced with the built-in 6-microphone array for voice pickup. Covering a range of 20-foot with 360° omni-direction, the phone is adequate to deliver clear and natural voice conference experience.With this magic black box, attendees from every corner of the room can hear and be heard with equitable clarity.

Diving into the field of audio communication for more than 20 years, Yealink has developed a series of acoustic technology including Smart Noise Filtering, Optimal HD audio and Noise Proof Technology to eliminate all the distracting sounds.The next-generation technology, powered by solid processing performance, significantly improves the audio quality in collaboration. The exchange of verbal message can be more productive than ever.

BYOD Mode, by simply connecting mobile devices (such as computer, smartphone, PSTN device CPN10, etc.) through Bluetooth or Type C or USB 2.0 port to realize Hybrid UC meeting (including PSTN, SIP, mobile phone).

Modest Design, Easy-to-Use User Interface,Built-in Battery, Wi-Fi and DECT to Minimize Deployment Costs,HD Audio, Smooth Communication,Rich Features and High Expandability

Key features

  • Modest Design, Easy-to-Use User Interface,Built-in Battery, Wi-Fi and DECT to Minimize Deployment Costs,HD Audio, Smooth Communication,Rich Features and High Expandability
  • 4-inch multi-touch screen with 480x800 resolution
  • Optimal HD audio, full duplex technology
  • Yealink Noise Proof Technology
  • Built-in rechargeable lithium battery
  • Up to 15 hours talk time (in ideal conditions)
  • Up to 75 hours standby time in Wi-Fi mode (in ideal conditions)
  • 20-foot (6-meter) and 360° voice pickup
  • Built-in 6-microphone array for voice pickup
  • 5-way conference call
  • Hybrid UC meeting
  • Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
  • Built-in Bluetooth 4.2

Specifications

CP935W technical specifications

  • Optimal HD audio
  • Yealink Noise Proof Technology
  • Smart Noise Filtering
  • 20-foot (6-meter) microphone pickup range
  • Applies to a small to medium conference room
  • Built-in 6-microphone array for voice pickup
  • Loudspeaker- Frequency: 100-20,000 Hz- Volume: 94dB at 0.5 m peak volume
  • 56mm diameter and 5W speaker
  • Full-duplex speakerphone with AEC
  • Echo cancellation tail length is up to 320ms
  • Background noise suppression
  • Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, PCMU(G.711µ), PCMA (G.711A), AMR
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • VAD, CNG, PLC, AJB, AGC

  • 1 SIP account
  • Call hold, mute, DND, call recording, hotline
  • 5-way conference call
  • Redial, call waiting, emergency call
  • Call forward, call transfer, call return, dial plan
  • Ringtone selection/import/delete
  • Set the date and time manually or automatically
  • Volume adjustment
  • Pairing via Bluetooth
  • Create a meeting directly
  • Join meeting seamlessly
  • Active Speaker
